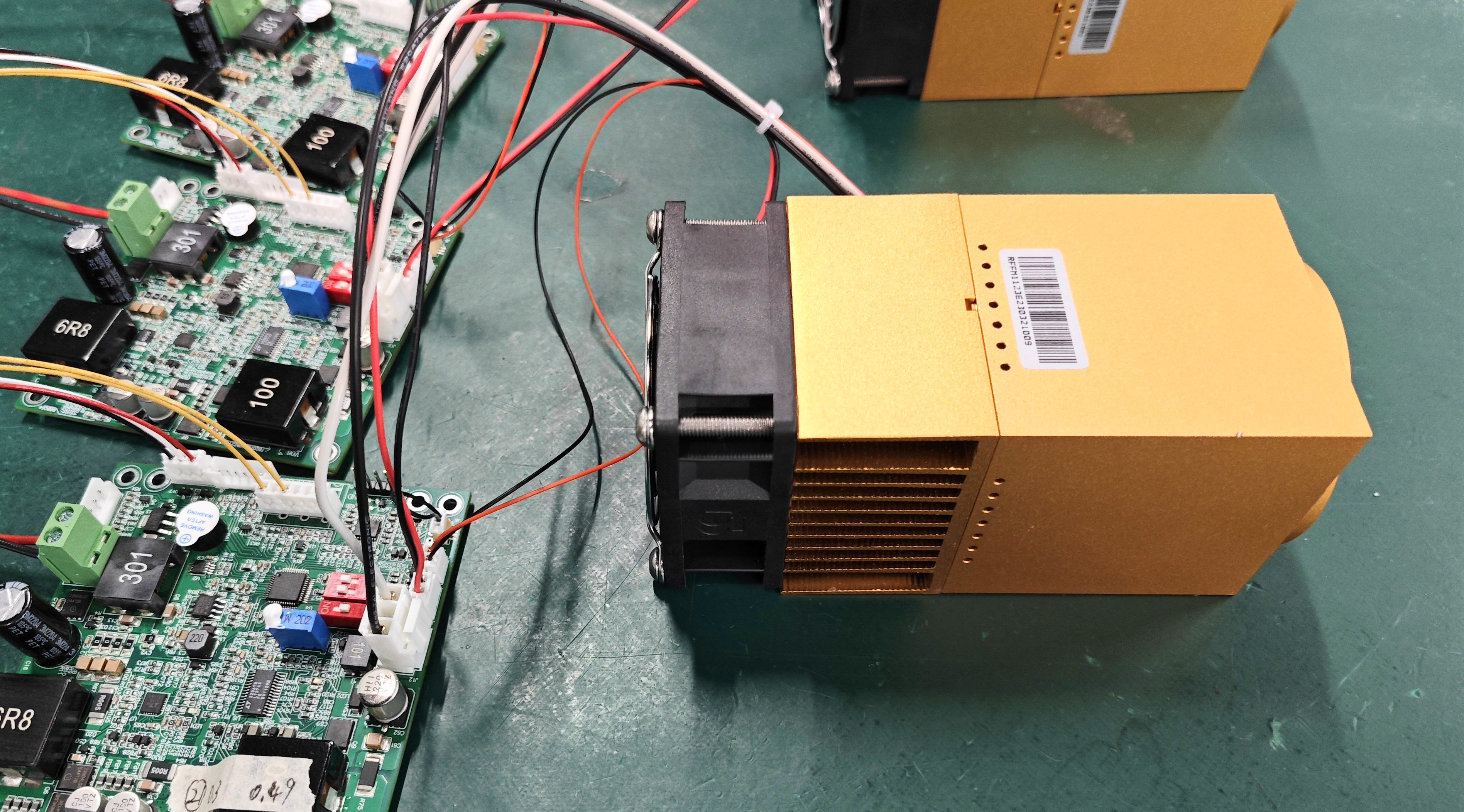

high RA Portable LED module for medical Endoscope

Rayfine Specialty lighting is focused on LED light module for medical equipment. We have passed ISO13485 and ISO9001.

Our major product lines:

• White LED light module for endoscope

• ICG-NIR fluorescence imaging light module

• NBI Light module

• Dental lamp and module

• Surgical microscope light module

• Surgical light module

Key parameter for super high brightness LED module:

·         CCT=5700±500K

·         Ra≥90

·         Back focus length 29mm

·         Luminous flux 3300lm out of module

·         Luminous flux 1250 out of Φ5mm, 1m optical fiber cable

·         IR cut-off performance:3.5mw/lm

·         Input power:80W

·         Input voltage: DC24V (can be customized as per customer request)

·         Heat sink temperature：45℃

·         Life time of LED：30000hours

Key parameter for ICG-NIR fluorescence FOI module as below

·         Light source: White light + 785nm laser

·         Peak wavelength:785nm

·         Light source White light: Ra>90

·         White light CCT=5700±500K

·         Luminous flux of white light 2300lm

·         Luminous flux of white light for Φ5mm light guide: 2600lm (NA=0.62)

·         Output power of 785nm laser=3500mW

·         Back focus length 23.6mm

·         Input voltage: DC12V for LED white light

·         Input power:90W including driver

·         Dimming of white light: Min:10%; Max:100%; By RS232 condition

·         Dimming of laser: Min:0; Max:100%; By RS232 condition

Key parameter for ENT portable light source as below

·         Ra>90

·         CCT=5500±500K

·         Back focus length 6.5mm

·         Output luminous flux 210lm

·         Power consumption 5W

·         IR cut-off performance: 2.7mW/lm

·         Spot size of focal plane: φ6.2mm

·         Duration:3 hours

·         Dimming: Stepless dimming
