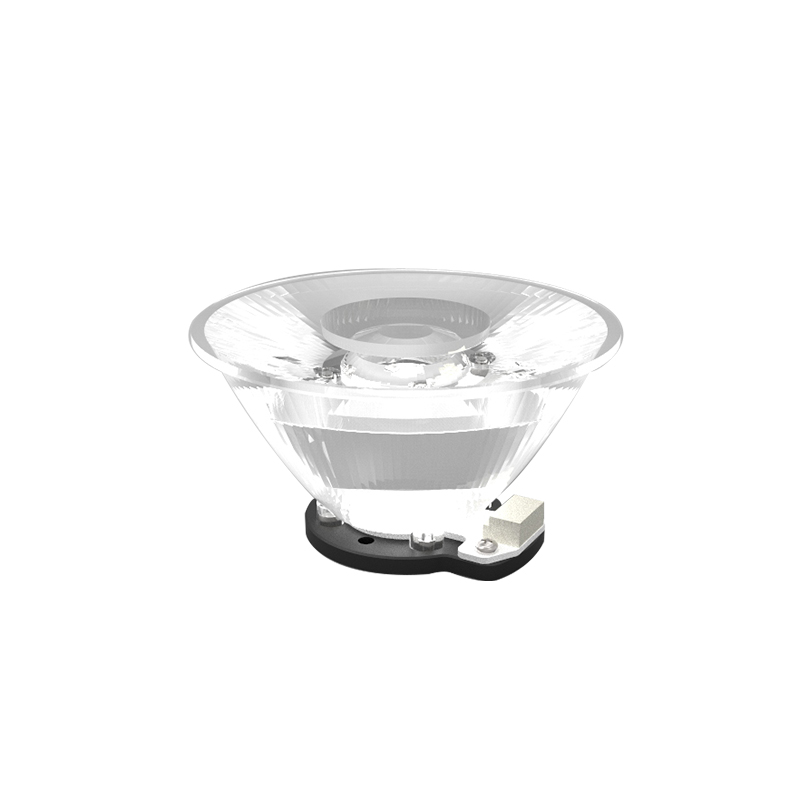

Surgical LED Light Module

Model:RFSM-1201

Kay features: Adjustable CCT,illuminance and spot sizes.

Typical applications: Surgical lamp, shadowless operating light.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RFSM-1201

  • Adjustable CCT,illuminance and spot sizes.

  • Surgical lamp, shadowless operating light.


Optical   data
Light source LED
CRI ≥90, Adjustble
CCT 3500K 3800K 4200K 4500K 4800K
Central   illuminance  Can be customized according to customer   requirement,max 160K lux
D50  @ 94mm   plane
D10  @ 164mm   plane
D50/D10 57.30%
Electrical   data Typical Value Remarks
Duration 24V DC ± 10% For   the light module driver
Power   consumption Refer to whole lamp
Dimming mode 20% ~ 100% Increment   10%

Illuminance distribution on the target plane (Φ180mm,CCT 4200K) for whole lamp:

1201-4          1201-5
