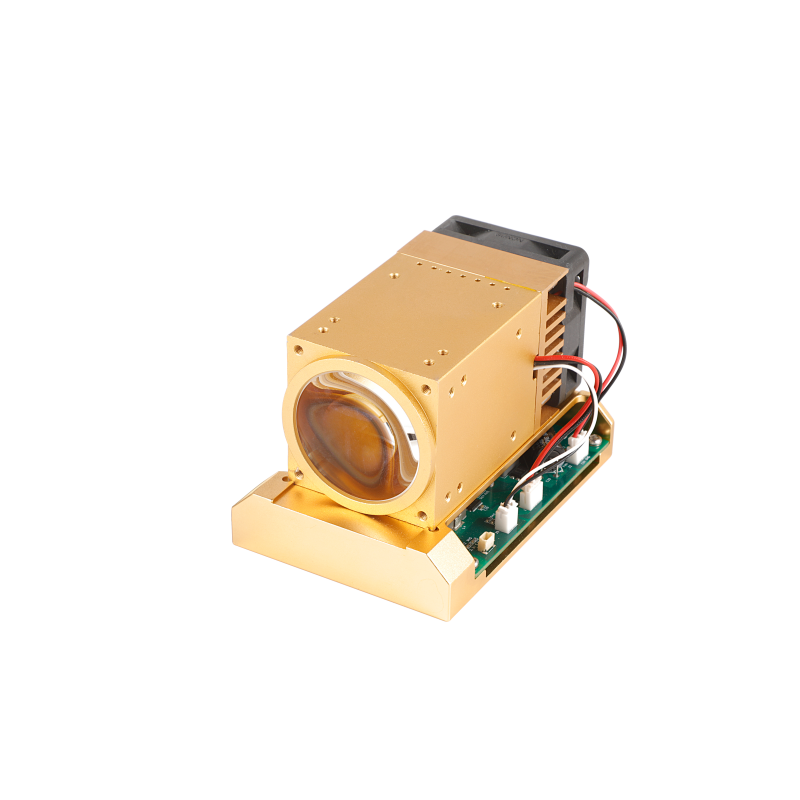

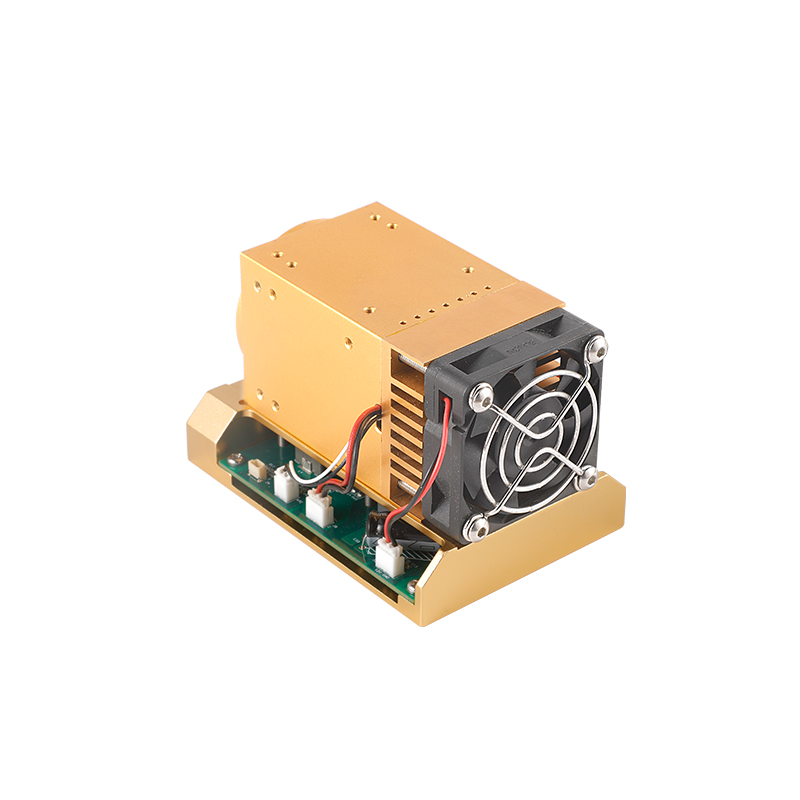

RFFM-1108
RFFM-1108
30W white light. Medium luminous flux with low power consumption, compact size.
ENT endoscope , gastrointestinal endoscope, urinary endoscope
| Optical data | Typical Value | Remarks |
| Light source | LED | |
| CCT | 5750±550K | After 1m, NA0.62,Φ5mm optical fiber |
| CRI | ≥90 | After 1m, NA0.62,Φ5mm optical fiber |
| Blue/Green ratio | 125% | After 1m, NA0.62,Φ5mm optical fiber |
| Red/Green ratio | 75% | After 1m, NA0.62,Φ5mm optical fiber |
| IR cut-off performance | 2.8 mW/lm | After 1m, NA0.62,Φ5mm optical fiber |
| Luminous flux output | 1050 lm | Input for Φ5mm light guide |
| Back focal length | 23.6 mm | From the last lens vertex |
| Electrical data | ||
| Input voltage | DC 12V | Can be customized according to customer requirement |
| Power consumption | 30 W | Driver board consumption included |
| Initial power | 40 W | Minimum power output |
| Dimming mode | PWM/POT/RS232/Key/Touch | Can be customized according to customer requirement |
Illuminance distribution on the focal plane
