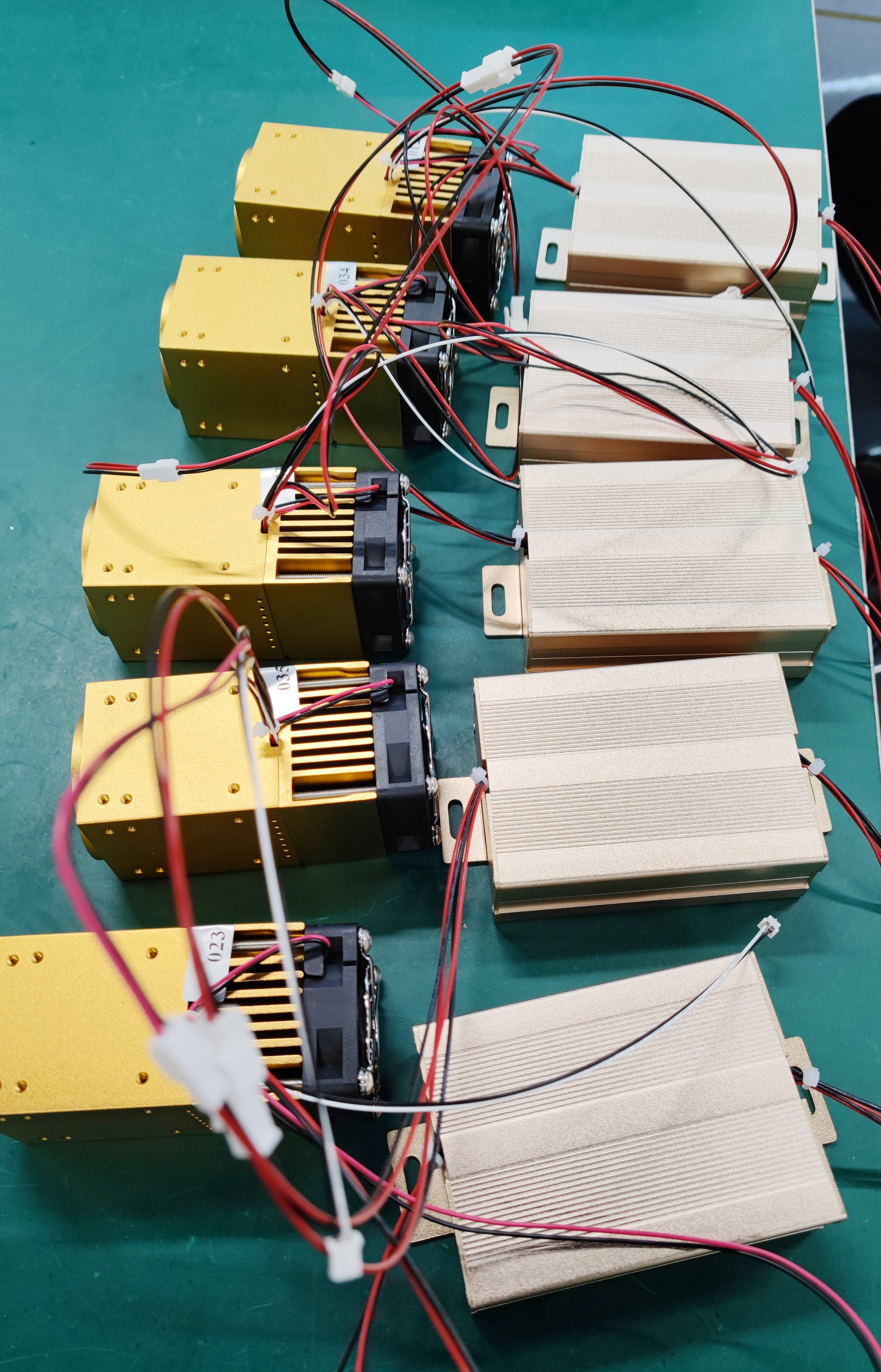

RFFM-1107
Medium luminous flux, low power consumption,high efficient
ENT endoscope , gastrointestinal endoscope, urinary endoscope
| Optical data | RFFM-1105 | RFFM-1107 | Remarks |
| Light source | LED | LED | |
| CCT | 6500±500K | 5750±550K | After 1m, NA0.62,Φ5mm optical fiber |
| CRI | ≥70 | ≥90 | After 1m, NA0.62,Φ5mm optical fiber |
| Blue/Green ratio | 148% | 125% | After 1m, NA0.62,Φ5mm optical fiber |
| Red/Green ratio | 42% | 83% | After 1m, NA0.62,Φ5mm optical fiber |
| IR cut-off performance | 3.2 mW/lm | 2.8 mW/lm | After 1m, NA0.62,Φ5mm optical fiber |
| Luminous flux output | 1400 lm | 1050 lm | Input for Φ5mm light guide |
| Back focal length | 23.6 mm | 23.6 mm | From the last lens vertex |
| Electrical data | |||
| Input voltage | DC 24V | DC 12/24V | Can be customized according to customer requirement |
| Power consumption | 30 W | 30 W | Driver board consumption included |
| Initial power | 40 W | 40 W | Minimum power output |
| Dimming mode | PWM/POT/RS232/Key/Touch | Can be customized according to customer requirement | |
Rayfine Specialty lighting is focused on LED light module for medical equipment. We have passed ISO13485 and ISO9001.
Our major product lines:
ICG-NIR fluorescence imaging light module
NBI Light module
Dental lamp and module
Surgical microscope light module
Surgical light module
Key parameter for LED Endoscope NBI Light Module
· White light +415nm+540nm+605nm LED
· White light Ra>90
· White light CCT=5700±500K
· Luminous flux of white light is1050lm
· Output power of 415nm is 2250mW
· Output lumen of 540nm is 310lm
· Output lumen of 605nm is 240lm
· Back focus length 23.6m
Key parameter for ICG-NIR fluorescence FOI module as below
· Light source: White light + 785nm laser
· Peak wavelength:785nm
· Light source White light: Ra>90
· White light CCT=5700±500K
· Luminous flux of white light 2300lm
· Luminous flux of white light for Φ5mm light guide: 2600lm (NA=0.62)
· Output power of 785nm laser=3500mW
· Back focus length 23.6mm
· Input voltage: DC12V for LED white light
· Input power:90W including driver
· Dimming of white light: Min:10%; Max:100%; By RS232 condition
· Dimming of laser: Min:0; Max:100%; By RS232 condition
