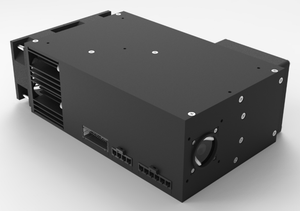

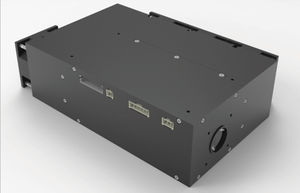

NBI white LED Light Module for endoscropy

Model:RFFM-1009

Kay features: White light +415nm blue light, aspheric glass lens,high flux output,reliable performance

Typical applications: Gastrointestinal endoscope , compound band imaging for endoscopes
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RFFM-1009

  • OEM/ODM

  • 9018903010

  • RFFM-1009

  • White light +415nm blue light, aspheric glass lens,high flux output.

  • Gastrointestinal endoscope , compound band imaging for endoscopes

Optical   data Typical Value Remarks
Light source LED
Peak wave length of blue LED 415 nm For blue LED
CCT of white   light 5750±550K White LED after 1m,   NA0.62,Φ5mm optical fiber
CRI of whith   light ≥90 White LED after 1m,   NA0.62,Φ5mm optical fiber
CCT of   white+blue light 6300±550K White + blue LED   after 1m, NA0.62,Φ5mm optical fiber
CRI of   white+blue light ≥90 White + blue LED   after 1m, NA0.62,Φ5mm optical fiber
Blue/Green   ratio 120% / 112% White+Blue/white   only
Red/Green   ratio 78% / 72% White+Blue/white only
IR cut-off   performance 4.3 mW/lm White + blue LED
Output   luminous flux of white light 990 lm Luminous flux input for NA=0.62,Φ5mm optical fiber
Output power   of  415 nm 1600 mW ± 20% Power input for NA=0.62,Φ5mm optical fiber
Back focal   length 23.6 mm From the last lens vertex
Electrical   data

Input voltage DC 24V Can be customized according to customer requirement
Power   consumption 35 W Driver board consumption included
Initial power 45 W Minimum power output
Dimming mode PWM/POT/RS232/Key/Touch Can be customized according to customer requirement

   Illuminance distribution on the focal plane
