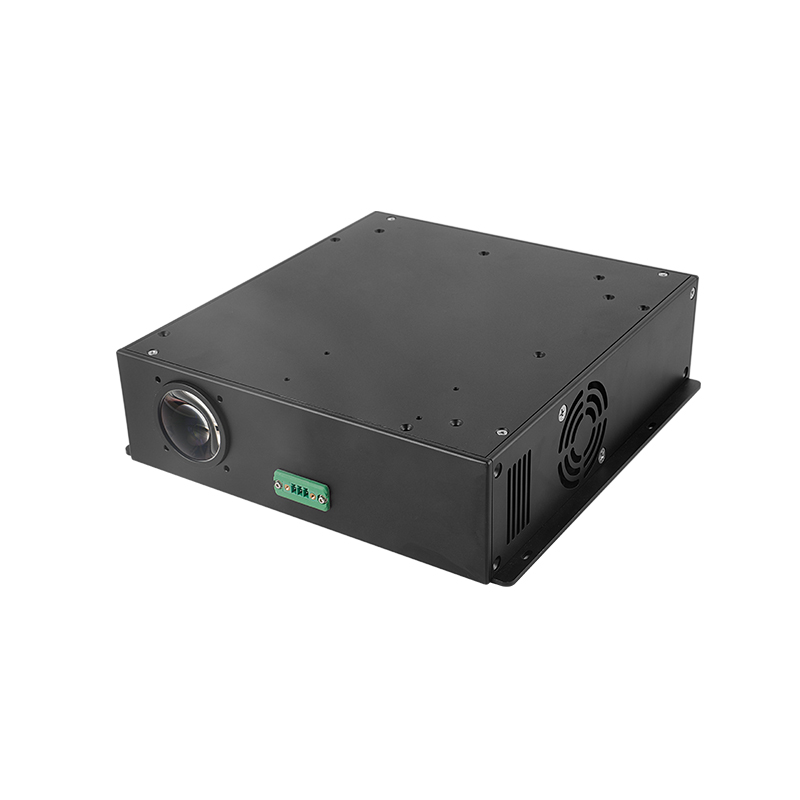

RFFM-16A5
RFFM-16A5
white LED+415nm LED+540nm LED+605nm LED+5 compound light output, aspheric glass lens.
NBI imaging and white light lighting for endoscopes
| Optical data | Typical Value | Remarks |
| Light source | White LED / 415 nm LED / 540 nm LED / 605nm LED | |
| CCT of white light | 5750±550K | White LED after 1m, NA0.62,Φ5mm optical fiber |
| CRI of whith light | ≥90 | White LED after 1m, NA0.62,Φ5mm optical fiber |
| Luminous flux of white light | 930 lm | Output after module |
| Output power of 415nm | 1800 mW | Output after module |
| Output luminous flux of 415nm | 9.3 lm | Output after module |
| Output luminous flux of 540nm | 280 lm | Output after module |
| Output luminous flux of 605nm | 190 lm | Output after module |
| Back focal length | 25.6 mm | From the last lens vertex |
| Working mode | ||
| 4 single color light output | White light/415nm/ 540nm/605nm | |
| 5 compound light output | White light+415nm/415nm+540nm/415nm+605nm/540nm+605nm/415nm+540nm+605nm | |
| Electrical data | ||
| Input voltage | DC 12V | Can be customized according to customer requirement |
| Power consumption | 55 W | Driver board consumption included |
| Initial power | 70 W | Minimum power output |
| Dimming mode | RS 232 | 5%~100% |
Illuminance distribution on the focal plane for white light
|
