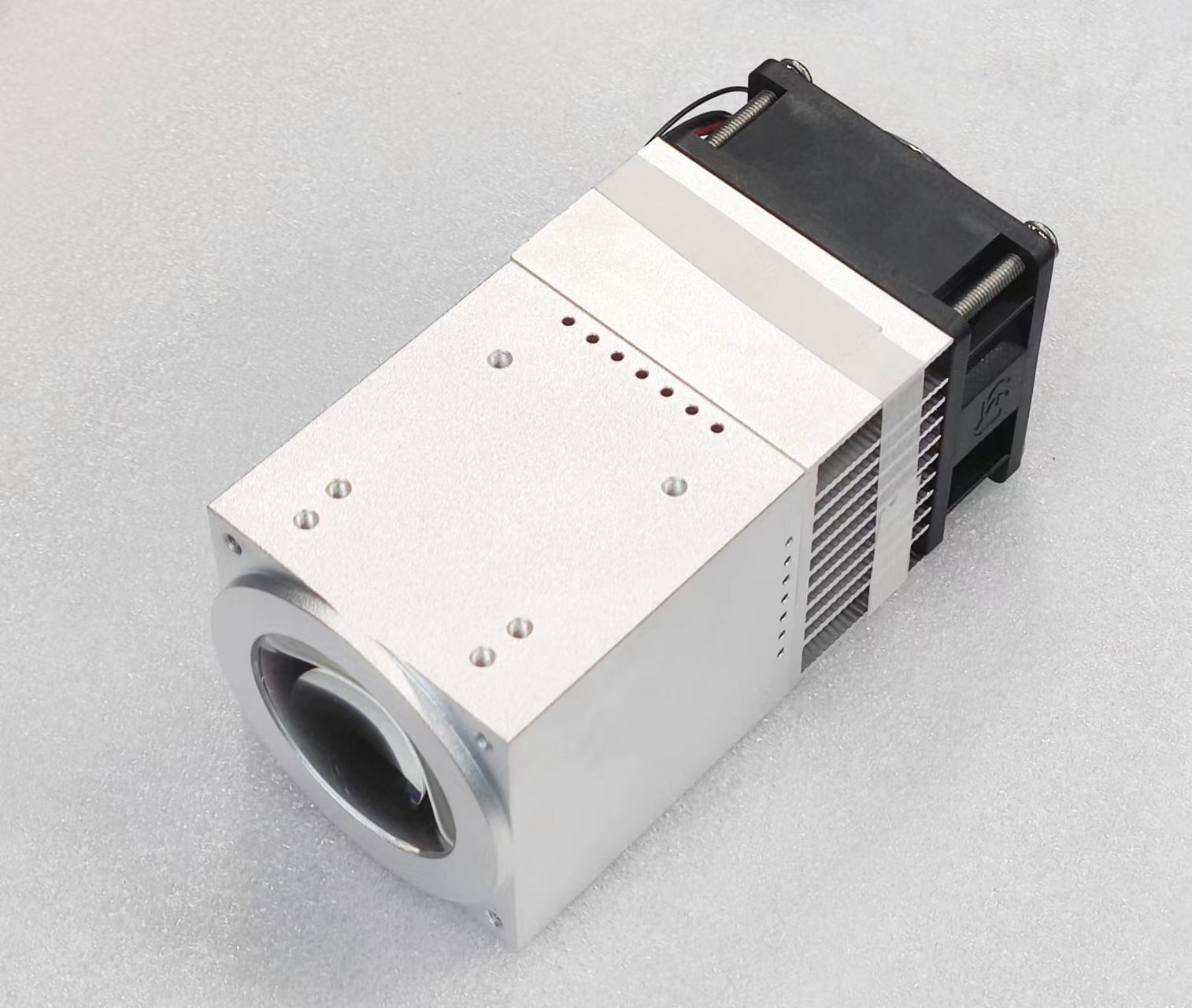

compact size Endoscope LED light source

Model:RFFM-1121

Kay features: 50W white light. High luminous flux ,to replace 175W Xenon lamp.

Typical applications: Laparoscope , gastrointestinal endoscope,hysteroscope
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RFFM-1121

  • 50W white light. High luminous flux ,to replace 175W Xenon lamp.

  • Laparoscope, gastrointestinal endoscopy

Optical   dataRFFM-1121RFFM-1122Remarks
Light sourceLEDLED
CCT5500±500K5500±500KAfter 1m, NA0.62,Φ5mm   optical fiber
CRI≥90≥65After 1m, NA0.62,Φ5mm   optical fiber
Blue/Green   ratio125%119%After 1m, NA0.62,Φ5mm   optical fiber
Red/Green   ratio74%44%After 1m, NA0.62,Φ5mm   optical fiber
IR cut-off   performance3.0 mW/lm2.7 mW/lmAfter 1m, NA0.62,Φ5mm   optical fiber
Luminous flux   output2200 lm3300 lmInput for Φ5mm light guide
Back focal   length23.6 mm23.6 mmFrom the last lens vertex
Electrical   data


Input voltageDC 12/24VDC 12/24VCan be customized according to customer requirement
Power   consumption58 W58 WDriver board consumption included
Initial power70 W70 WMinimum power output
Dimming modePWM/POT/RS232/Key/TouchCan be customized according to customer requirement

Key parameter for LED Endoscope NBI Light Module

·         White light +415nm+540nm+605nm LED

·         White light Ra>90

·         White light CCT=5700±500K

·         Luminous flux of white light is1050lm

·         Output power of 415nm is 2250mW

·         Output lumen of 540nm is 310lm

·         Output lumen of 605nm is 240lm

·         Back focus length 23.6m
