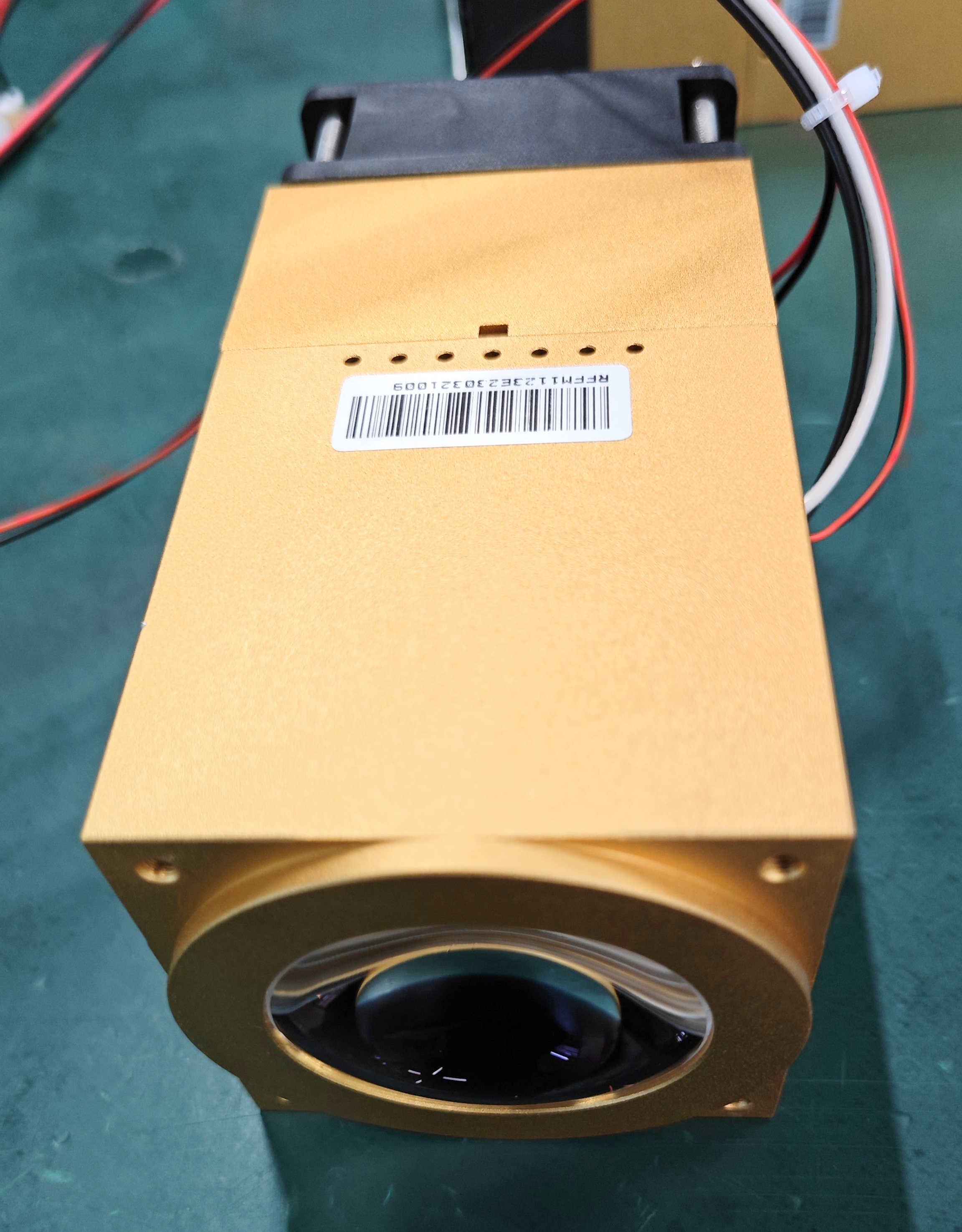

High Ra LED light module for urology endoscope


Key features: Medium luminous flux with low power consumption,compact size
Typical applications: ENT endoscope , gastrointestinal endoscope, urinary endoscope
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • RFFM-1107-A

  • Medium luminous flux with low power consumption, compact size

  • ENT endoscope, gastrointestinal endoscope, urinary endoscope

Optical   dataTypical ValueRemarks
Light sourceLED
CCT5750±550KAfter 1m, NA0.62,Φ5mm   optical fiber
CRI≥90After 1m, NA0.62,Φ5mm   optical fiber
Blue/Green   ratio125%After 1m, NA0.62,Φ5mm   optical fiber
Red/Green   ratio75%After 1m, NA0.62,Φ5mm   optical fiber
IR cut-off   performance2.8 mW/lmAfter 1m, NA0.62,Φ5mm   optical fiber
Luminous flux   output1050 lmInput   for Φ5mm light guide
Back focal   length23.6 mmFrom   the last lens vertex
Electrical   data

Input voltageDC 12VCan   be customized according to customer requirement
Power   consumption30 WDriver   board consumption included
Initial power40 WMinimum   power output
Dimming modePWM/POT/RS232/Key/TouchCan be   customized according to customer requirement

Rayfine Specialty lighting is focused on LED light module for medical equipment. We have passed ISO13485 and ISO9001.

Our major product lines:

  • White LED light module for endoscope

  • ICG-NIR fluorescence imaging light module

  • NBI Light module

  • Dental lamp and module

  • Surgical microscope light module

  • Surgical light module

Key parameter for LED Endoscope NBI Light Module

·         White light +415nm+540nm+605nm LED

·         White light Ra>90

·         White light CCT=5700±500K

·         Luminous flux of white light is1050lm

·         Output power of 415nm is 2250mW

·         Output lumen of 540nm is 310lm

·         Output lumen of 605nm is 240lm

·         Back focus length 23.6m

Key parameter for Gastrointestinal endoscope light source

·         Ra≥90

·         CCT=5700±500K

·         Back focus length 23.6mm

·         2200lm output out of module

·         1050lm Luminous flux out of fiber

·         Input voltage: DC12V (To be customized as per customer requirements)

·         Power consumption:50W

·         IR cut-off performance:3.5mW/lm

·         PWM/Linear Dimming: min 10%; max:100% (PWM dimming, to be customized as per customer requirements)

·         Net weight:385g+289g (light engine + driver case)

Key parameter for ENT portable light source as below

·         Ra>90

·         CCT=5500±500K

·         Back focus length 6.5mm

·         Output luminous flux 210lm

·         Power consumption 5W

·         IR cut-off performance: 2.7mW/lm

·         Spot size of focal plane: φ6.2mm

·         Duration:3 hours

·         Dimming: Stepless dimming
