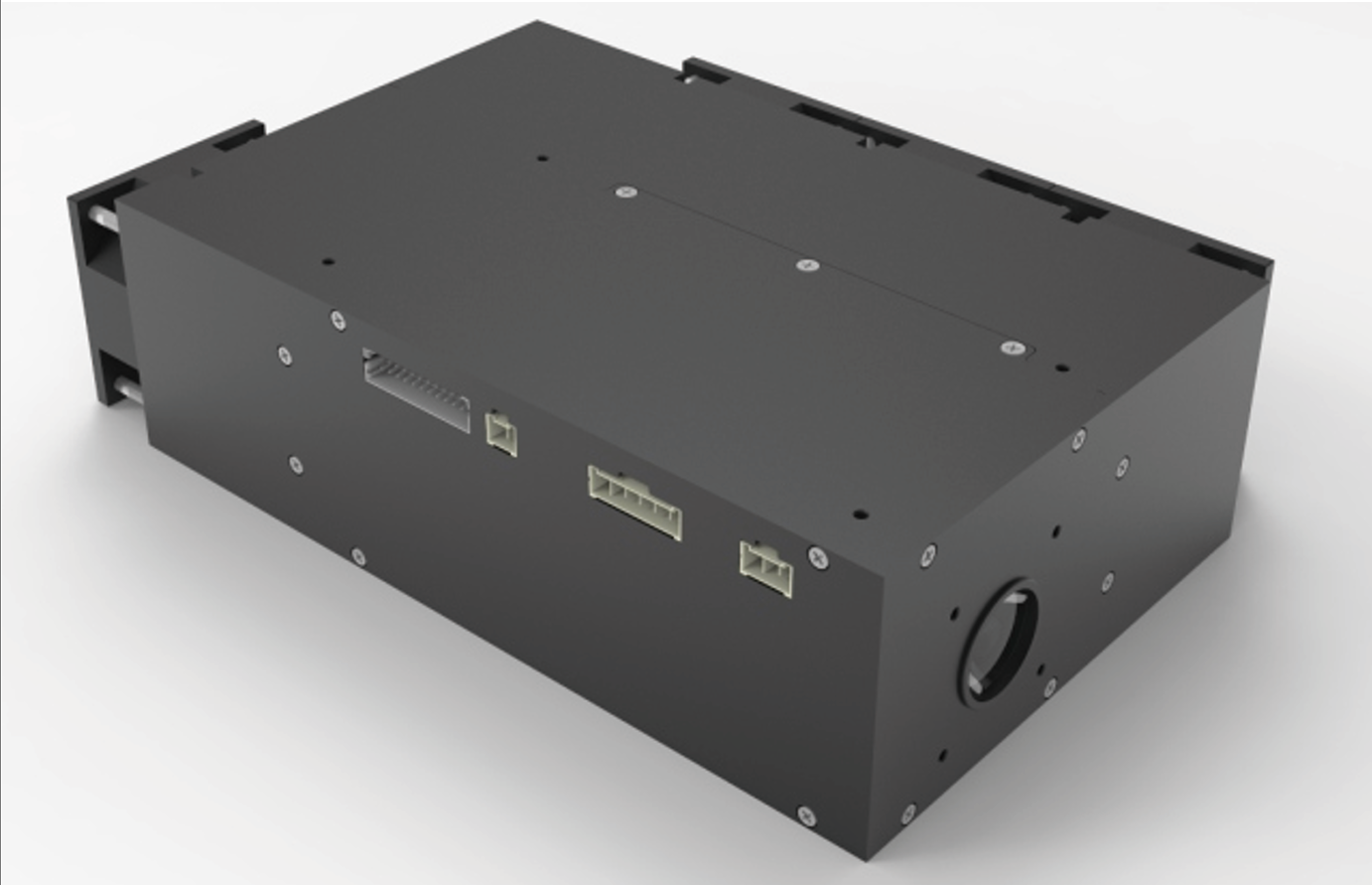

5 color lights NBI module for endoscope

Model:RFFM-16N2

Key features: white LED+405nm LED+450nm LED+520nm LED+590nm LED+631 nm LED compound light output,aspheric glass lens, reliable performance

Typical applications: NBI imaging and white light lighting for medical endoscopes


Availability:



Inquire

Model:
RFFM-16N2
Data sheet download:
RFFM-16N2 Data Sheet_A_V2.pdf
Model:
RFFM-16N2
Kay features:
white LED+405nm LED+450nm LED+520nm LED+590nm LED+631 nm LED compound light output,aspheric glass lens, reliable performance
Typical applications:
NBI imaging and white light lighting for medical endoscopes

Product Description

Technical Data
Parameter		Min	Typical	Max	Remarks/Conditions
Optical Data
light source		405nm+450nm+520nm+590nm+631nm LED
Mixed white light	CCT	Defined by custom light ratio			Output data of module
Mixed white light	Ra			＞85
Violet light	Output power		5400mW
	Peak wavelength	400nm	405nm	410nm
	FWHM		15nm
Blue light	Output power		3500mW
	Luminous Flux		145lm
	Predominance wavelength	440nm	450nm	470nm
	FWHM		23nm
Wide green light	Output power		1850mW
	Luminous Flux		930lm
	Predominance wavelength		535nm
	FWHM		50nm
Amber light	Output power		815mW
	Luminous Flux		390lm
	Predominance wavelength	580nm	590nm	600nm
	FWHM		20nm
Red light	Output power		4700mW
	Luminous Flux		720lm
	Predominance wavelength	621nm	631nm	641nm
	FWHM		20nm
Back focus length			7.5mm		From the last lens vertex
divergence angle			100°		Adapted fiber NA≥0.77
