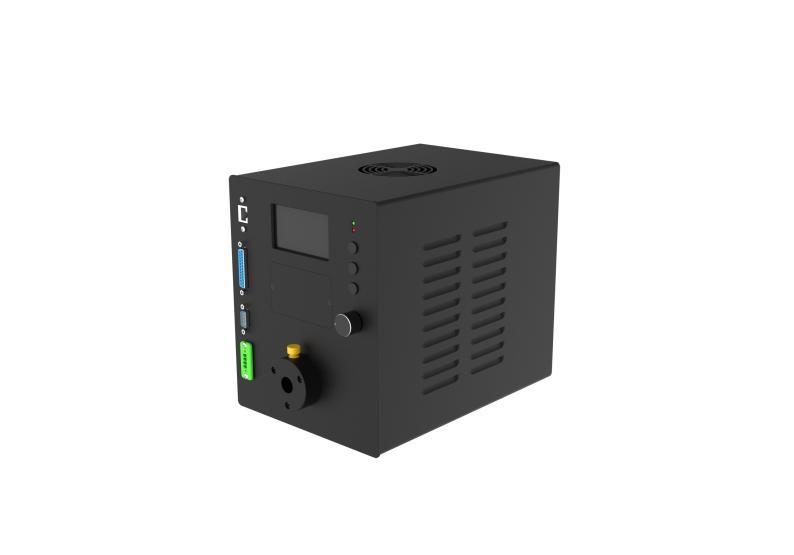

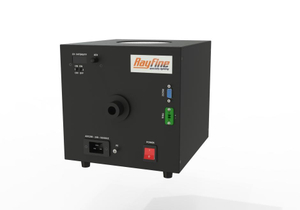

RFIL-60E3
RFIL-60E3
300W power consumption. Ultar-high intensity illuminator, high speed response, optional continuous lighting and strobe lighting(internal and external trigger mode)
AOI , semiconductor inspection.
Technical Data | ||||
Parameter | Min | Typical | Max | Remarks/Conditions |
Optical Data | ||||
light source | LD | |||
CCT | 6600K | 7100K | 7600K | Illuminator output quantity |
Ra | 65 | |||
Emission angle (full angle) | 25° | |||
Modular luminous flux | 15000lm | |||
Size of the spot on the focal plane | Φ8mm | |||
Fiber backscatter value (20mm) | 70 million Lux | After 2m, NA0.55, Φ8mm fiber | ||
Emitting color(7 colors) | W(white)、R(red)、G(green)、B(blue)、C(cyan)、M(magenta)、Y(yellow) | |||
Average lifespan | 24000h | Stabilization time at 50% maximum light intensity | ||
Electric Data | ||||
Drive type | constant current drive | |||
Trigger response time | 1 microsecond | |||
Input voltage | -10% | AC 220V | +10% | Customization acceptable |
Power | 290 W | Total power consumption | ||
Current adjustment range | 0.5A | 3.2A | ||
Simulated dimming range | 0 | 5V | ||
Start waiting setting (microseconds) | 0000 | 9999 | ||
Illumination time setting (microseconds) | 0001 | 9999 | ||
Cycle setting (microseconds) | 00002 | 99999 | ||
External trigger filter value (microseconds) | 0 | 50 | ||
Dimensions and Weight | ||||
Dimensions | As drawing | |||
Weight | 6.5KG | Illuminator weight | ||
Accessories | fliter×6、Filter mounting bracket×6、power cord×1 | |||
Conditions | ||||
Working temperature | -10℃ | 30℃ | ||
Relative humidity | 95% | |||
Transportation and storage | -20℃ | 80℃ | ||
