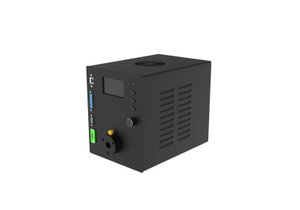

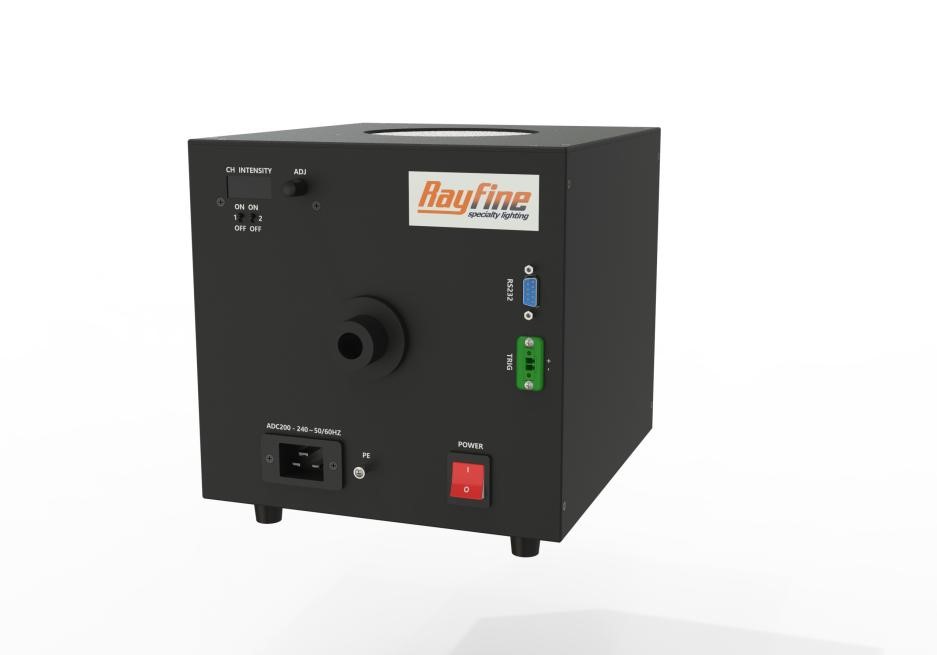

RFIL-10E3
RFIL-10E3
80W power consumption. 480W instaneous power. LED high intensity illuminator, high speed response, optional continuous lighting and strobe lighting(internal and external trigger mode)
AOI , industrial microscope.

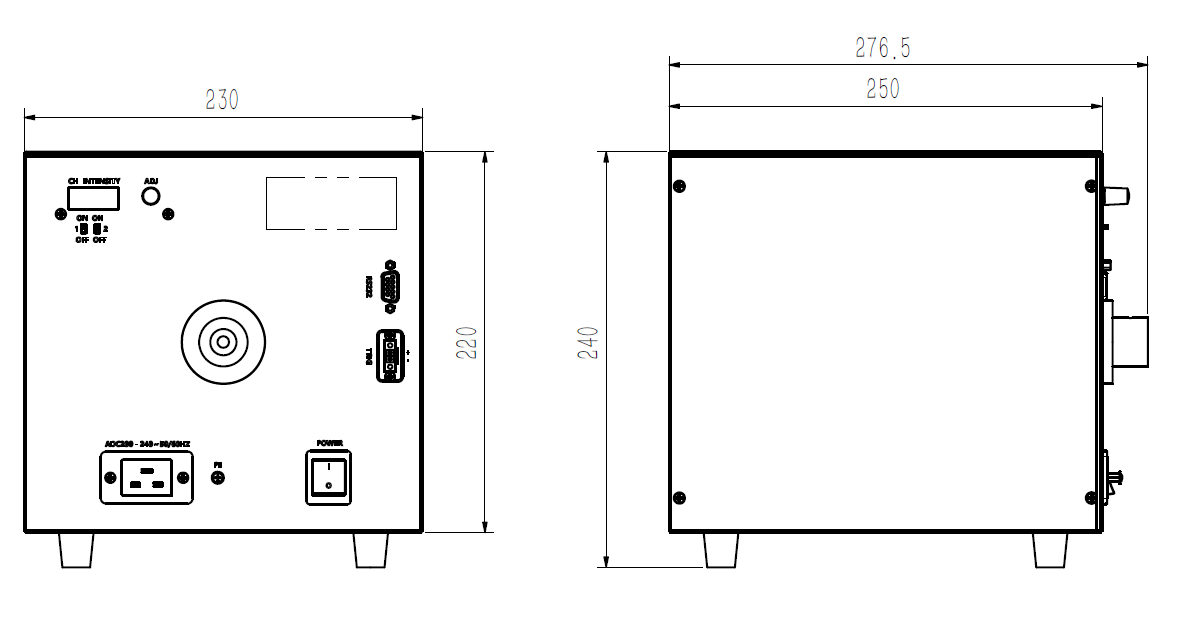

| Technical DataParameterMinTypicalMaxRemarks/ConditionsOptical Datalight sourceLEDCCT4500K5000K5500KAfter 1M，Φ8mm，NA0.55 fiberRa65Constant flux2100lmIlluminance at a 20mm distance11 million lux5 kHz, duty cycle 10%, flashing luminous flux3500lmElectric DataInput voltage-10%AC 220V+10%Customization acceptablecontinuous power80 WTotal power consumptionStrobe power480WTotal power consumptionCurrent adjustment range0255255 dimming levelsDimensions and WeightDimensionsAs drawingWeight6500gIlluminator weightConditionsWorking temperature-20℃40℃Relative humidity95%Transportation and storage-20℃80℃ Dimensions of illuminator：

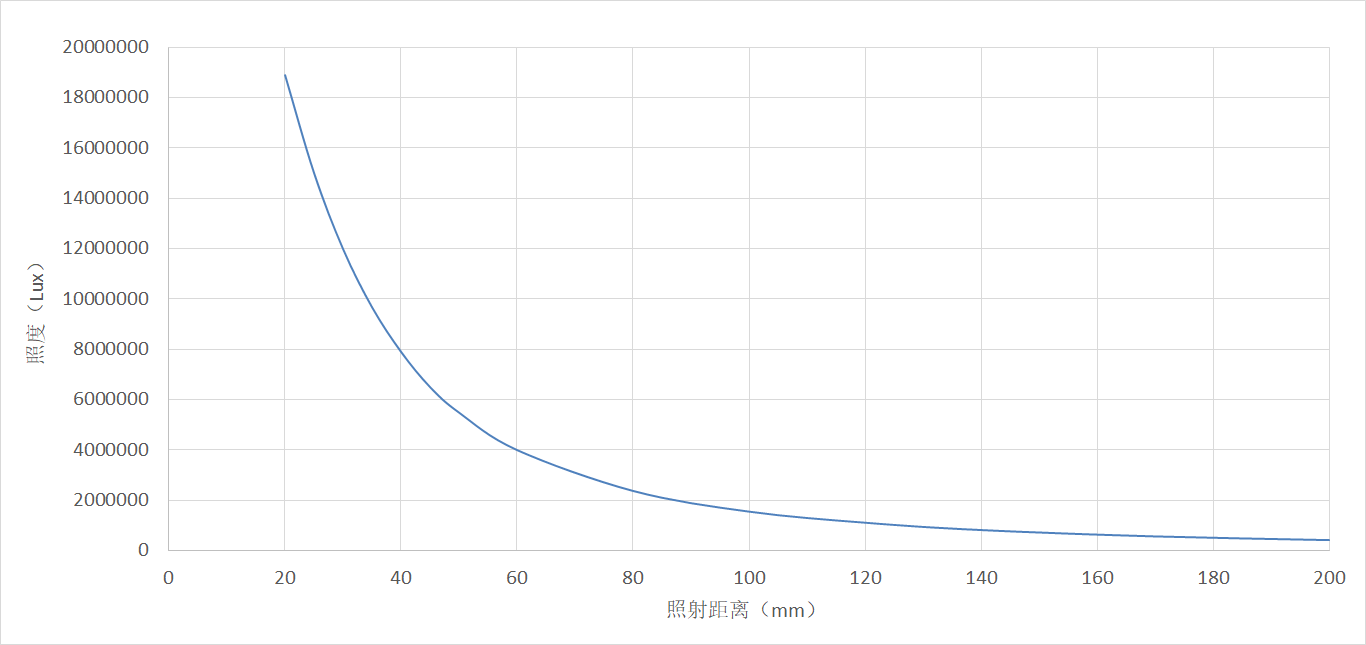

Illuminance variation curve with distance:

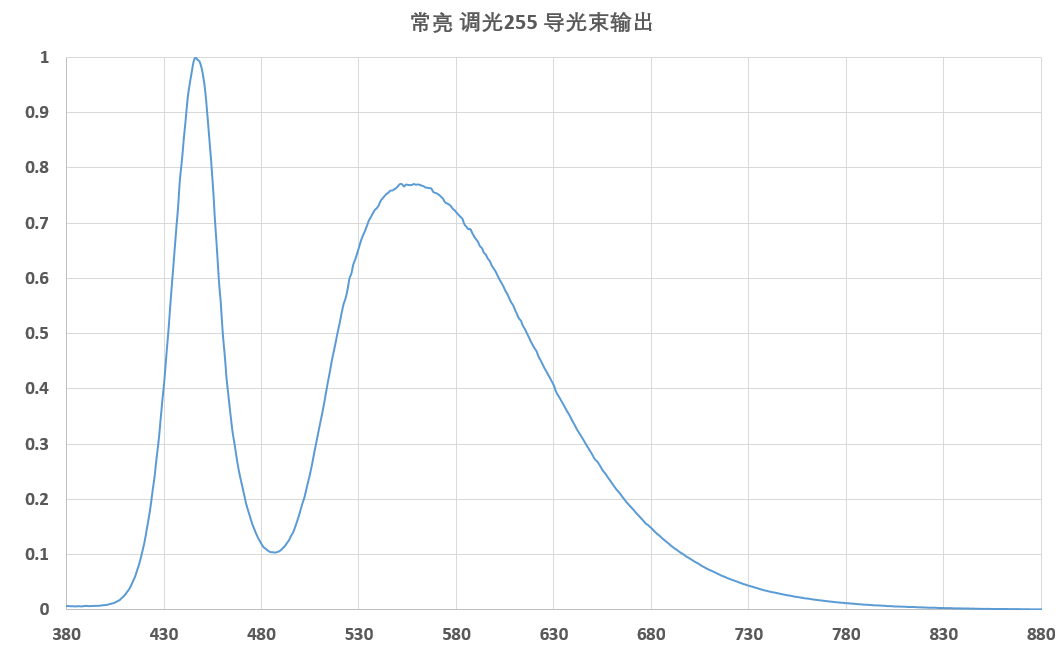

Spectrum:
|
| Technical DataParameterMinTypicalMaxRemarks/ConditionsOptical Datalight sourceLEDCCT4500K5000K5500KAfter 1M，Φ8mm，NA0.55 fiberRa65Constant flux2100lmIlluminance at a 20mm distance11 million lux5 kHz, duty cycle 10%, flashing luminous flux3500lmElectric DataInput voltage-10%AC 220V+10%Customization acceptablecontinuous power80 WTotal power consumptionStrobe power480WTotal power consumptionCurrent adjustment range0255255 dimming levelsDimensions and WeightDimensionsAs drawingWeight6500gIlluminator weightConditionsWorking temperature-20℃40℃Relative humidity95%Transportation and storage-20℃80℃ Dimensions of illuminator：
Illuminance variation curve with distance:
Spectrum:
|
