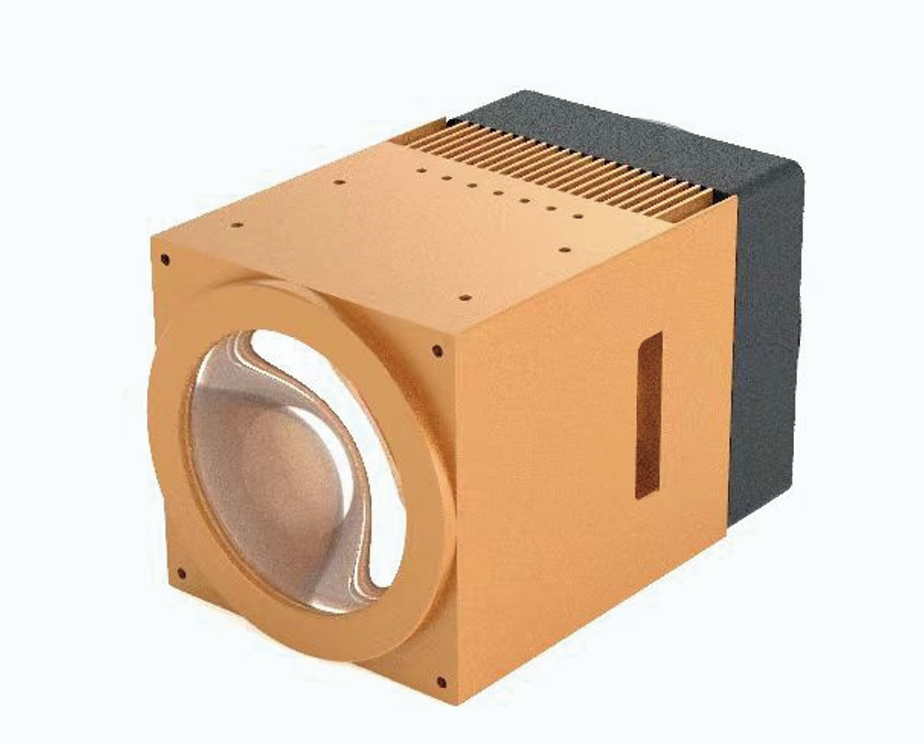

RFFM-1501
RFFM-1501
High intensity, high stability, high speedresponse, optional continuous lighting and strobelighting (internal trigger mode and external trigger mode)
AOI, Industrail Microscope
Technical Data | ||||
Parameter | Min | Typical | Max | Remarks/Conditions |
Optical parameters (forward current of light source 5.8A) | ||||
light source | LED | |||
CCT | 5200 K | 5700 K | 6200 K | After 1M，Φ8mm，NA0.47 fiber |
Ra | 60 | |||
Ratio of blue /green light radiant flux | 115% | |||
Ratio of red /green light radiant flux | 40% | |||
Infrared cutoff performance | 3.0 mW/lm | |||
Module outputs luminous flux | 4200 lm | Luminous flux output for Φ8mm light guide | ||
Back Focal Length | 48 mm | From the vertex of the last lens | ||
Electric Data | ||||
Forward Current of Light Source | 6.0A | Tc=25℃（Tc is the temperature of the thermistor） | ||
Forward Voltage of Light Source | 15V | |||
Recommended power supply power | 110 W | Select the power supply power based on this value | ||
Dimensions and Weight | ||||
Dimensions | As drawing | |||
1630 g | ||||
Conditions | ||||
Working temperature | -20℃ | 45℃ | Tc ：-20℃～85℃ | |
Relative humidity | 95% | |||
Transportation and storage | -20℃ | 80℃ | ||
