Dental Light Module

Model:RFDL-0402

Kay features: High efficient white light and single yellow light output;Non-touch On/Off control; Non-touch white light and yellow light switch(with bluetooth+IR sensor);Facets reflector; Excellent shadowless and lighting uniformity.Low power consumption,long life time,free maintenance.

Typical applications: Dental lamps
Availability:
  • RFDL-0402

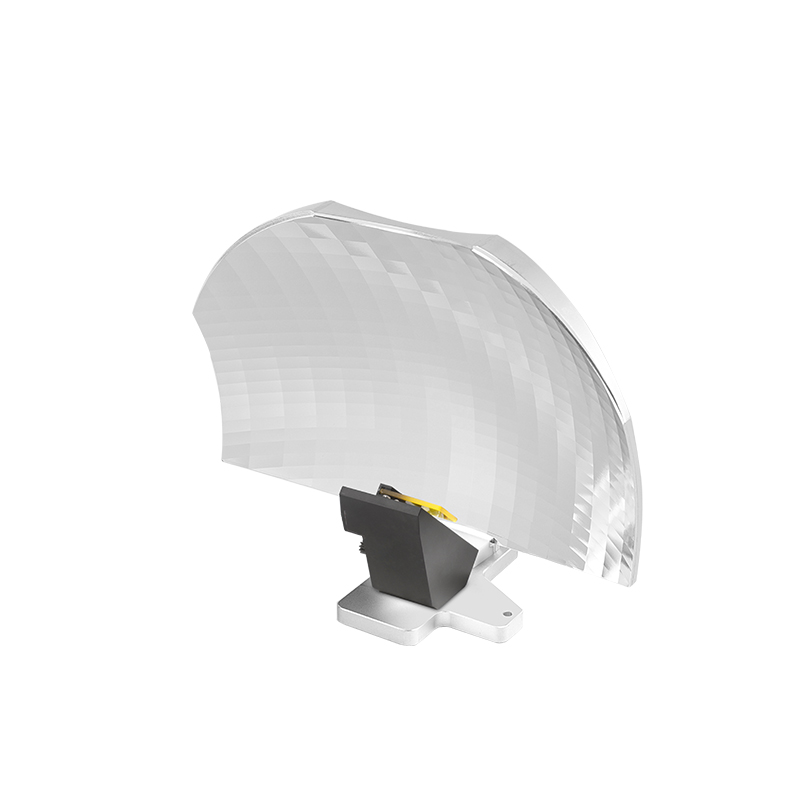

  • High efficient white light and single yellow light output;Non-touch On/Off control; Non-touch white light and yellow light switch(with bluetooth+IR sensor);Facets reflector; Excellent shadowless and lighting uniformity.Low power consumption,long life time,free maintenance.
  • Dental lamps

Parameter

典型值 (Typical Value)

备注 (Remarks)

光源 (Light source)

LED


色温 (CCT)

5000±500K

白光 ( white light)

显色指数 (CRI)

≥90

白光 ( white light)

照度 (Illuminance)

54500±7500 lux

白光,不加盖 ( white light,without cover)

光斑尺寸 (Light pattern size)

155mmx85mm±10%


测试距离 (Lighting distance)

700mm

以面罩为参照点(from the cover)

电气参数 (Electrical data)

输入电压 (Input voltage)

DC 24V~34V


功率 (Power consumption)

10.5W

模组功耗 (Power consumption of the module)

启动功率 (Initial power)

15W

最低电源输出功率 (Minimum power output)


Illuminance distribution at target plane of 700mm distance for white light
