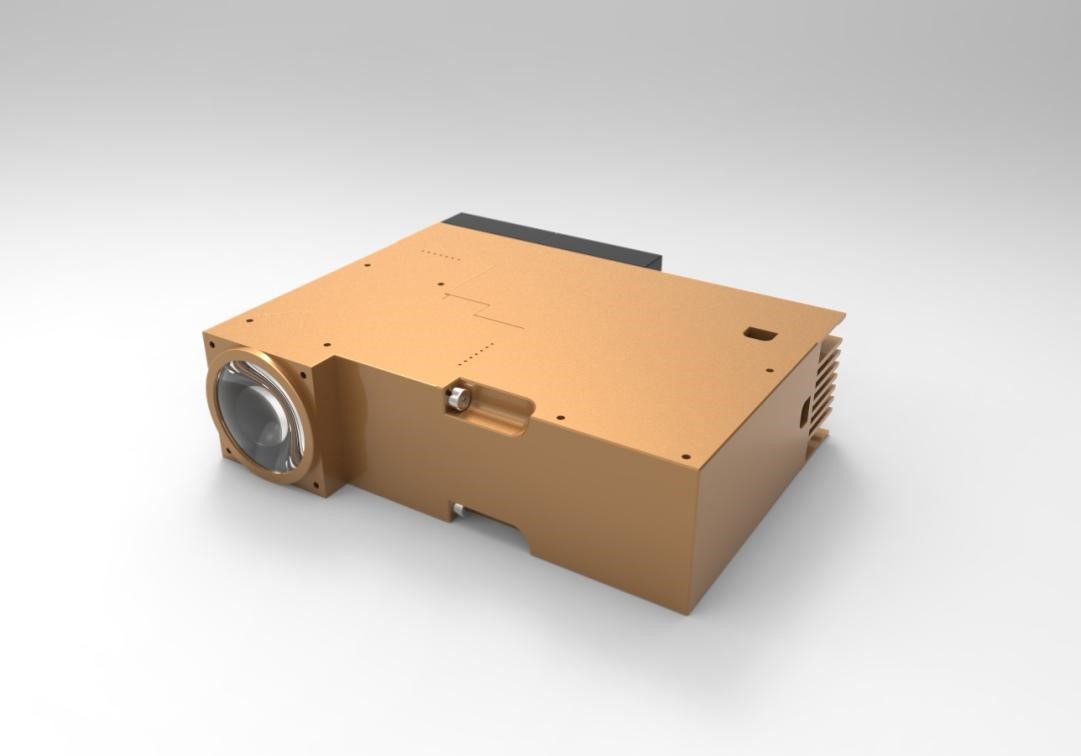

RFFM-1723P
RFFM-1723P
130W power concumption, white LED+785nm LD
ICG-NIR fluorescence imaging+strobe mode, for 3D+4K imaging
Technical Data | ||||
Parameter | Min | Typical | Max | Remarks/Conditions |
Optical Data | ||||
Light source | White LED+785nm laser | |||
Peak wavelength of the laser | 785nm | FWHM:3nm | ||
White light CCT | 5000K | 5500K | 6000K | After fiber of 1m,Φ5mm,NA=0.62 |
White light Ra | 90 | After fiber of 1m,Φ5mm,NA=0.62 | ||
Luminous Flux of white light | 2200 lm | Out put of module, spot size at focus plane: 4.5X5.5mm | ||
Out put power of 785nm LD | 4200mW | After the module, input for the fiber of NA=0.62，Φ5mm | ||
Back focus length | 23.6mm | From the last lens vertex | ||
Electric Data | ||||
Input voltage | -10% | DC 12V | +10% | |
Input power | 130W | The power supplied to the driver | ||
Recommend selected power of source | 160 W | The source power should be selected based on this value | ||
Dimming of white light | 5% | 100% | RS232+PWM, Current accuracy±10% | |
Dimming of laser | 5% | 100% | RS232+PWM, Current accuracy±10% | |
Dimensions and Weight | ||||
Dimensions | As drawing | |||
Weight | 1600g+208g | Light engine + Driver | ||
Conditions | ||||
Working temperature | -20℃ | 40℃ | ||
Relative humidity | 95% | |||
Transportation and storage | -20℃ | 80℃ | ||
Reliability | ||||
Life of LED | 30,000 h | Tj of LED ≤125℃ | ||
Life of LD | 20,000 h | Tc of LD ≤30℃ | ||
| ||||

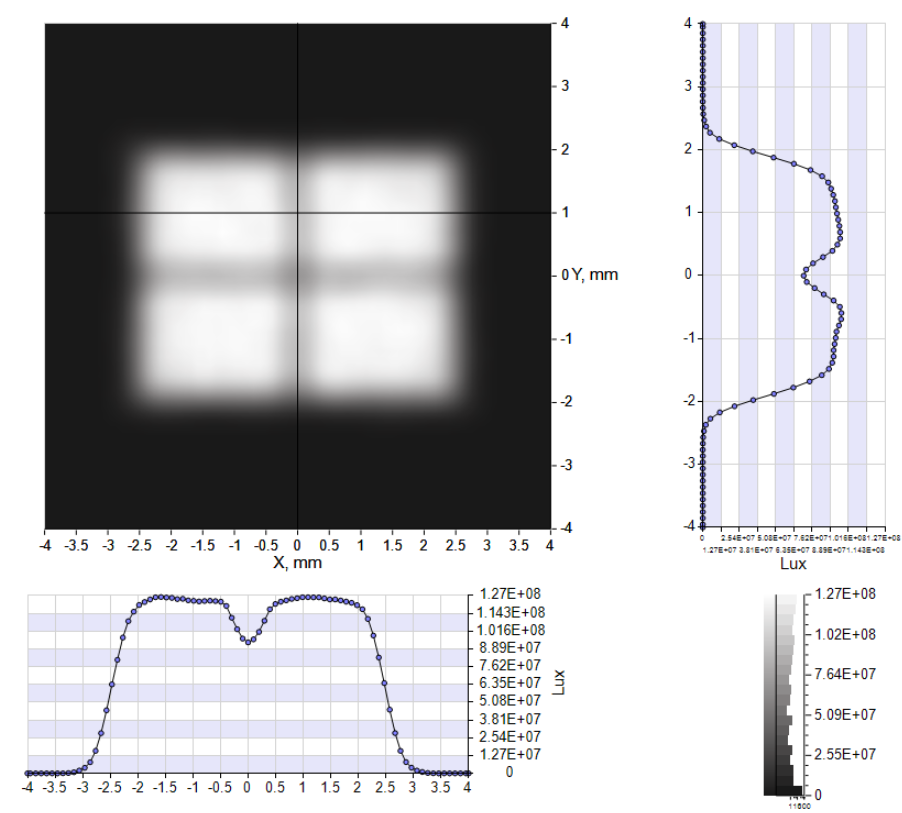

White light illuminance distribution at focal plane:

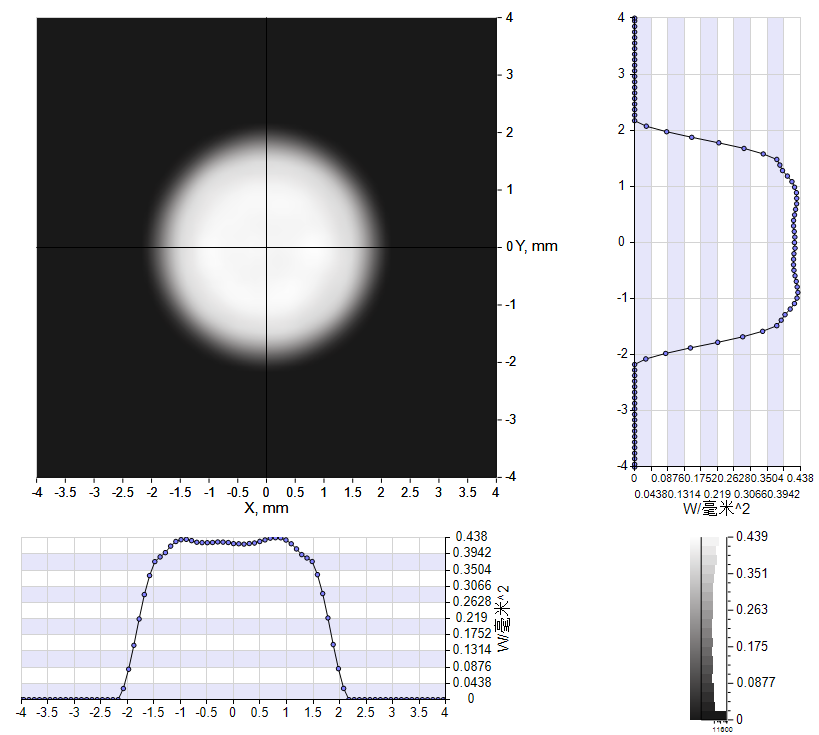

Near-infrared light irradiance distribution at focal plane:
