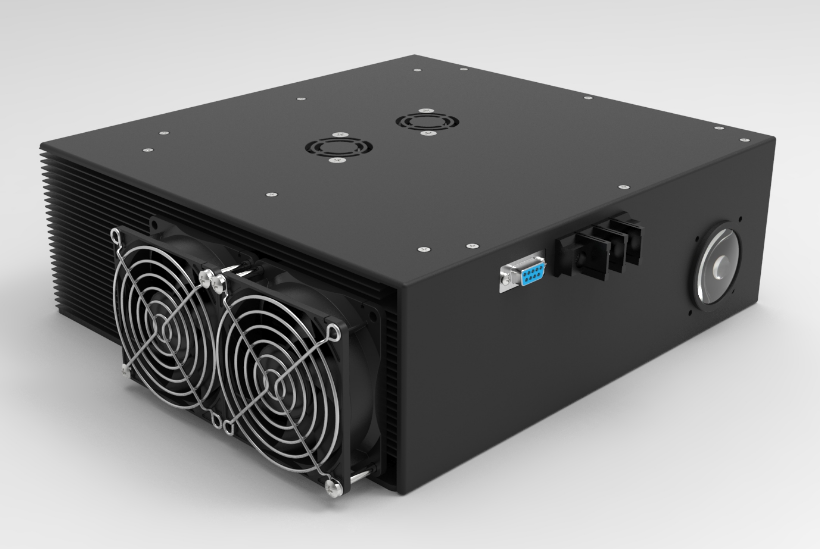

RFFM-16B6
RFFM-16B6
320W power concumption, white LED+660nm LED+785nm LED
ICG-NIR fluorescence imaging+MB fluorescence imaging
Work mode | |
7 types of light output modes | |
Monochromatic light output | White light |
660nm | |
785nm | |
Composite light output | White light+785nm |
White light+660nm | |
660nm+785nm | |
White light+660nm+785nm | |
Technical Data | |||||
Parameter | Min | Typical | Max | Remarks/Conditions | |
Optical Data | |||||
light source | White light LED + 660nmLD + 785nmLD | ||||
White light | CCT | 5200 K | 5700 K | 6200 K | After fiber of 1m, Φ5mm, NA=0.62 White light mode |
Ra | 90 | ||||
blue/green light radiance ratio | 125% | ||||
red/green light radiance ratio | 72% | ||||
Infrared cutoff performance | 3.5 mW/lm | ||||
Luminous flux | 2200 lm | Mod output value | |||
660nm | Luminous flux | 5600 mW | Mod output value | ||
Predominance wavelength | 655 nm | 660 nm | 665 nm | ||
FWHM | 3 nm | 4 nm | |||
785nm | Luminous flux | 5600 mW | Mod output value | ||
Predominance wavelength | 780 nm | 785 nm | 790 nm | ||
FWHM | 3 nm | 4 nm | |||
Back focus length | 23.6mm | From the last lens vertex | |||
Electric Data | |||||
Input voltage | -10% | 12V DC | +10% | ||
Input power | 320W | Power supply to the driver board | |||
Recommend selected power of source | 420 W | The source power should be selected based on this value | |||
White light current adjustment range | 5% | 100% | RS232，current accuracy±10% | ||
660nm Current adjustment range | 5% | 100% | |||
785nm Current adjustment range | 5% | 100% | |||
Dimensions and Weight | |||||
Dimensions | As drawing | ||||
Weight | 6000g | Estimated, not measured | |||
Conditions | |||||
Working temperature | -20℃ | 35℃ | |||
Relative humidity | 95% | ||||
Transportation and storage | -20℃ | 70℃ | |||
Reliability | |||||
Life of LED | 30,000h | Tj of LED ≤125℃ | |||
Life of LD | 20,000h | Tc of LD ≤30℃ | |||
Work mode | |
7 types of light output modes | |
Monochromatic light output | White light |
660nm | |
785nm | |
Composite light output | White light+785nm |
White light+660nm | |
660nm+785nm | |
White light+660nm+785nm | |
Technical Data | |||||
Parameter | Min | Typical | Max | Remarks/Conditions | |
Optical Data | |||||
light source | White light LED + 660nmLD + 785nmLD | ||||
White light | CCT | 5200 K | 5700 K | 6200 K | After fiber of 1m, Φ5mm, NA=0.62 White light mode |
Ra | 90 | ||||
blue/green light radiance ratio | 125% | ||||
red/green light radiance ratio | 72% | ||||
Infrared cutoff performance | 3.5 mW/lm | ||||
Luminous flux | 2200 lm | Mod output value | |||
660nm | Luminous flux | 5600 mW | Mod output value | ||
Predominance wavelength | 655 nm | 660 nm | 665 nm | ||
FWHM | 3 nm | 4 nm | |||
785nm | Luminous flux | 5600 mW | Mod output value | ||
Predominance wavelength | 780 nm | 785 nm | 790 nm | ||
FWHM | 3 nm | 4 nm | |||
Back focus length | 23.6mm | From the last lens vertex | |||
Electric Data | |||||
Input voltage | -10% | 12V DC | +10% | ||
Input power | 320W | Power supply to the driver board | |||
Recommend selected power of source | 420 W | The source power should be selected based on this value | |||
White light current adjustment range | 5% | 100% | RS232，current accuracy±10% | ||
660nm Current adjustment range | 5% | 100% | |||
785nm Current adjustment range | 5% | 100% | |||
Dimensions and Weight | |||||
Dimensions | As drawing | ||||
Weight | 6000g | Estimated, not measured | |||
Conditions | |||||
Working temperature | -20℃ | 35℃ | |||
Relative humidity | 95% | ||||
Transportation and storage | -20℃ | 70℃ | |||
Reliability | |||||
Life of LED | 30,000h | Tj of LED ≤125℃ | |||
Life of LD | 20,000h | Tc of LD ≤30℃ | |||
